Los ojos simples u ocelos, en número de tres, están situados en la parte superior de la cabeza, entre los ojos
Los dos ojos compuestos están formados por numerosas facetas hexagonales y cada uno de ellos por miles de ojos simples (3.000 en la reina, 6.000 en la obrera y 13.000 en el zángano). La forma de las facetas hace pensar en el tipo de construcción de los panales. La visión de los colores varía con respecto a la visión humana. Tienen más agudeza visual en el lado ultravioleta del espectro. En el lado del rojo se muestran prácticamente ciegas. Ven muy bien el color azul, amarillo, verde-azulado y ultravioleta.
Estas patas tienen los dispositivos para almacenar el polen y propóleos, llamadas corbículas o “cestillos” del polen, que se encuentran en la parte exterior de la tibia, estos cestillos tienen unos pelos fuertes y algo curvados, lo que les permite retener el polen o propóleos recogidos de las flores o de los brotes que visitan las abejas, después de ser amasado con las mandíbulas.
Los “cestillos” del polen solamente los tienen las obreras, por el contrario las reinas y zánganos carecen de ellos por no necesitarlos.
En este tercer par tienen otro dispositivo, que lo emplean a modo de pinza para recoger las
laminillas de cera elaboradas en las glándulas cereras y posteriormente pasarlas a las mandíbulas para su amasado y posterior construcción de panales.
EXTERNAL ANATOMY OF THE BEE.
By: Dr. Vet. Jesus Martinez Llorente
Morphology (anatomy) of the outer and inner mellifera bee essentially corresponds to that of other insects. The same is true of physiology (vital functions). However there differences to be indicated for a better understanding of their etiology (behavior).
Logically anatomical peculiarities and vital functions they are inter-related.
EXTERNAL ANATOMY OF BEE
The bee belongs to the animal kingdom, and within it, the kind of arthropods (jointed legs), the class Insecta Hymenoptera (membranous wings) and Apidae family.
The body of the honey bee is divided into head, thorax and abdomen, parties are united and move together. The external skeleton (exoskeleton) composed of chitin, which gives the insect the necessary stability, protects the three major parties that the body of the bee is divided; in the first two forming rigid boxes last so extensible.
The exoskeleton, which has the differential particularity to vertebrates to be external and therefore limits the growth definitely, houses inside the soft organs, unlike the higher animals, where the soft organs covering the skeleton.
It is composed of the cuticle that forms two layers: a hard outer (exocutícula) and indoor (endocutícula). Internally, the exoskeleton is covered by the basement membrane, where the muscles are inserted.
The head, quitinosa box, which is shaped like an inverted triangle, houses the organ of vision (eyes simple and compound eyes), antennae and mouthparts. It is attached to a narrow chest and webbing of the neck.
The head consists of six escleritos closely welded together.
Simple or ocelos, three in number, eyes are located at the top of the head between the eyes
compounds, for tactile hairs are coated and have very simple structure.
With them you can see the bee at close range, and almost dark conditions inside the hive. It has been found that are sensitive to light intensity and organs are used as photometers, determining the beginning and end of the workday.
The two compound eyes are composed of numerous hexagonal facets and each by thousands of simple eyes (3,000 in queen, 6,000 and 13,000 working on the drone). The shape of the facets suggests the type of construction of the honeycombs. The color vision varies with respect to human vision. They have more visual acuity in the ultraviolet end of the spectrum. On the side of red is virtually blind. Look great blue, yellow, green-blue and ultraviolet.
The red color they see like black and inside yellow confuse orange and yellow-green as if they were yellow.
Visual acuity is lower than that of men, but equal time, the bee eye perceives images 10 times. Receive polarized light, in which light rays vibrate in a single plane.
The two antennas emerge from the center of the face, being closely spaced articulating head through a membrane.
The antenna consists of a rigid part (scape) and other flexible (flagellum) is divided into segments (knuckles). The portion that follows the "escaped" is called stem or stalk, is a knuckle which is also part of the flagellum.
Artejos number is 12 in the queen and workers and 13 in the drone.
The antennas have many sensory organs, hairy and shaped plates or pores, numbering 3,000, for antenna Queen of 3600-6000 in the working and about 30,000 in the drone, which are responsible for touch, hearing and smell.
The hairs or hair organs are organs of touch and lining most of the antenna, and the plates or funnel-shaped pores and are used to smell.
If we make a cross section of the antenna, and observed to see inside very manifest a network of nerves that serve as transmitter and receiver apparatus sensations microscope.
In the chest is where the locomotor system, being constituted by three segments or rings, which are named as follows front to back: Prothorax, Mesothorax and Metathorax and an additional segment called propodeum. In each segment it carries a pair of legs, and the second and third each carry a pair of membranous wings. They also have spiracles (openings), through which enters the air for oxygenation of the chest.
The chest is also called "thorax" and its top ridge is where the queens are marked with corresponding color year according to the international color code to identify the year of his birth.
As we have seen before bees have three pairs of legs, and so they can have these movements are divided into nine parts called knuckles, two short the first of which is attached to the body, three short (femur, tibia and Tarsus), the latter being composed of four parts.
The first pair of legs is located on the prothorax, and have a number of devices or parts that primarily used for: cleaning the eyes, a sort of brush; two pieces (vellum and comb or brush), the latter being articulated, which closes at will for cleaning antennas.
In the last knuckle of Tarsus has two hooks, that used to cling to surfaces on which you want to walk, which can be smooth or rough, and also to hold on to other bees, forming the so-called chain of wax, or when the swarm forming the classic ball or swarm.
The second pair of legs are located on the mesothorax and have no special feature.
In this part of the chest the first pair of stigmata (spiracles) opens, of great importance in the diagnosis of the disease called Acarapisosis.
These legs take on the end of a hook or tarsal spur used to dislodge the balls of pollen, leading into the "baskets" of the third pair of legs.
A kind of brush, used for cleaning the wings.

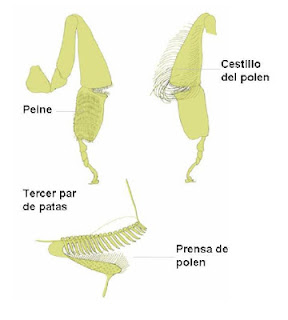

The third pair of legs are located on the metatórax and are the largest.
These legs have devices to store pollen and propolis, called corbiculae or "buckets" pollen found in the outside of the tibia, these buckets have strong hairs and somewhat curved, allowing them to retain pollen or propolis collected from the flowers or buds visiting bees, after being kneaded with the jaws.
The "baskets" of pollen only have the workers, by contrast queens and drones lack them not to need them.
In this third pair they have another device, employing the pincer to collect
wax flakes made in the wax glands and then pass them to the jaws for kneading and subsequent construction of honeycombs.
The wings are located in the thorax, the first larger insert into two metathorax and two smaller on the mesothorax.
These two pairs of wings are formed of a thin, transparent membrane and reinforced by a network of chitinous ribs at the same time allow the irrigation of the hemolymph (blood of the bee) and oxygen.
Have convex and concave ribs and ribs have, in a certain area, a provision
and measurement (cubital index) used to classify the different races of bees.
When the bee makes long flights linking the two wings by means of hooks or hooks to form a single large wing that makes flying much faster.
On the contrary when you visit precision flying flowers and collect nectar or pollen these the disengaged and can stand still in the air like dragonflies.
The abdomen consists of 9 segments, but are visible only 6 females and 7 males. Abdominal segments each possess two plates, calling dorsal "tergitas" and ventral "sternites", these being connected by flexible membranes, which allows a variety of movements, such as extended or shortened and bent in any direction .
Intersegmental membranes sternites of weak consistency, being pierced by destructive feeding with Varroa bee hemolymph.
In each tergita they have a small hole which are stigmas or spiracles, where it enters the air inside the insect.
The abdomen is covered with hairs and along its length and color indexes of the segments are also used for the identification of different strains of bees.
In the abdomen we find: the wax glands, gland Nosanoff and defense apparatus.
